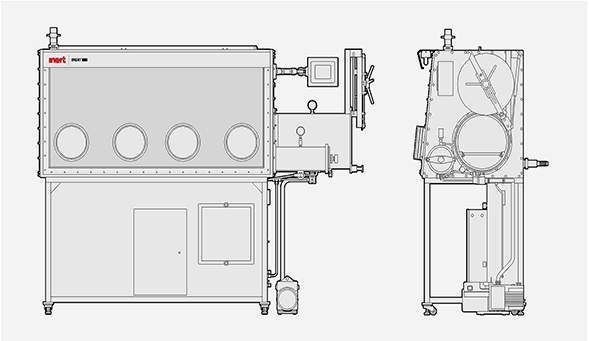

1213 mm W x 764 mm D x 897 mm H
2005 mm W x 1034 mm D x 2024 mm H
1803 mm W x 764 mm D x 897 mm H
2595 mm W x 1034 mm D x 2024 mm H
1524 mm W x 764 mm Dx 897 mm H
2316 mm W x 1034 mm D x 2024 mm H
Internal Finish:Type 304 stainless steel, #4 |
External surfaces:RAL 7035 |
Wall thickness:0.105" (2.6 mm) |
Feedthrough:4x DN 40 ISO-KF blank |
Internal Power:1 x electrical feedthrough |
Internal Power:1 x fuse protected 6 outlet power strip |
Shelving:2 x Height adjustable 304 stainless steel #4 finish. |
Plumbing:304 stainless steel tubing |
Filters:1xInlet/1x Outlet HEPA (99.99% vs 0.3 micron MPPS) |
Lighting:External Fluorescent light |
Power:100-120 or 200-240 VAC 50/60 Hz 20 Amp |
Overall System Leak Rate:<0.05vol%/h (ISO 10648-2) Non-modular box design |
Large Antechamber, 15" (381 mm) internal diameter x 24" (609 mm) internal length
Bolt on left or right side
Internal tray:304 stainless steel #4 surface finish Manual evacuate/refill valves Leak rate:< 105 mbar l/s |
Small Antechamber, 6" (152 mm) internal diameter x 17.3"(441 mm) internal length
Manual evacuate/refill valve
Leak rate:<10% mbar 1/s |
Tempered safety glass window 3/8" (9.5 mm) thick.
Viewing size : 41.8” (1061 mm) Wide x 30.2" (767 mm) High
Circular glove ports 0.015" (0.4mm) thick butyl rubber gloves, hand size 9.75 |
I-Lab Gas Purifier
Single column gas purification system
|
<1ppm 0, and <1ppm H,O purity level
O, capacity=43 L
H2O capacity = 1800 g |
Automated purifier column valves: Interlocked with the blower.
Blower will not run if the valves fail to open
|
Max flow rate through purifier column:30 cfm (50 m3/h) |
PLC control system |
Monochrome touch screen |
Automatic pressure control: (+/- 15 mbar) |
Manual pressure control:Footswitch |
Fully automatic regeneration sequence. |
Manual purge valve |
Vacuum pump:10 cfm (17 m3/h) rotary vane pump with oil mist eliminator & oil return kit |
Integrated oygen analyzer: Range 0-1000 ppm
Zirconia sensor as standard or electrochemical sensor for solvent compatibility
|
Integrated moisture analyzer:Range 0-1000 ppm |
