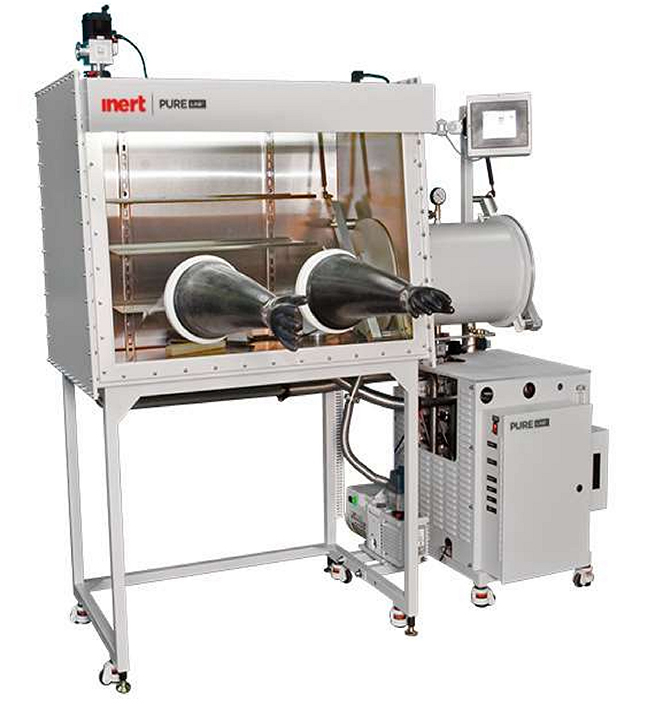

• Inert Glovebox System의 Premium 라인
  • Gas Management System 사용으로 고객의 필요에 따라 다양한 사이즈, 형태로 제작 가능
  • 다양한 옵션(장비) 설치 가능(용매정제장치 연결 가능)
  • Designed & Made in USA

PURELAB HE 2GB

Internal Dimensions:

1250 mm W x 780 mm D x 900 mm H

External Dimensions:

2000 mm W x 1067 mm D x 1921 mm H

PURELAB HE 3GB

Internal Dimensions:

1500 mm W x 780 mm D x 900 mm H

External Dimensions:

2315 mm W x 1067 mm D x 1921 mm H

PURELAB HE 4GB 1800

Internal Dimensions:

1800 mm W x 780 mm D x 900 mm H

External Dimensions:

2595 mm W x 1067 mm D x 1921 mm H

PURELAB HE 4GB 1950

Internal Dimensions:

1950 mm W x 780 mm D x 900 mm H

External Dimensions:

2741 mm W x 1067 mm D x 1921 mm H

PURELAB HE 4GB 2500

Internal Dimensions:

2500 mm W x 780 mm D x 900 mm H

External Dimensions:

3218 mm W x 1067 mm D x 1921 mm H

DESIGN OPTIONS

  • Double Sided Access
  • Left Sided Antechambers
  • Through Flow Antechambers
  • Laminar Flow
  • Circular Glove Ports
  • Polycarbonate Window
  • Dry Vacuum Pump
  • Pure Solv MD Integration
  • Other Customizations

SPECIFICATIONS

Internal Finish: Type 304 stainless steel, #4
External surfaces: RAL 7035
Wall thickness: 0.105" (2.6 mm)
Feedthrough: DN 40 ISO-KF blank and 3/8" compression bulkhead
Internal Power: Electrical feedthrough
Internal Power: Fuse protected 6 outlet power strip
Shelving: 3 x Height adjustable 304 stainless steel #4 finish
Plumbing: 304 stainless steel tubing
Filters: 1 x Inlet/ 1 x Outlet HEPA (99.99% vs 0.3 micron MPPS)
Lighting: External Fluorescent light
Power: 100-120 or 200-240 VAC 50/60 Hz 20 Amp
Overall System Leak Rate: <0.05vol%/h (ISO 10648-2)
Modular box design
Large Antechamber, 15" (381 mm) internal diameter x 24" (609 mm) internal length
  • Bolt on left or right side
  • Internal tray: 304 stainless steel #4 surface finish
  • Automatic control: Evacuate/refill 1-9 Cycles
  • Leak rate: <10-5 mbar l/s
Small Antechamber, 6" (152 mm) internal diameter x 17.3"(441 mm) internal length
  • Internal tray: 304 stainless steel #4 surface finish
  • Manual evacuate/refill valve
  • Leak rate: <10-5 mbar l/s
Tempered safety glass window 3/8" (9.5 mm) thick.
Oval glove ports:
  • Black Delrin, 8" glove port
  • Internal glove port cover
  • 0.015" (0.4mm) thick butyl rubber gloves, hand size 9.75
Pure Lab HE Gas Purifier
  • Available as single and dual column purifier versions with and without external
    solvent removal. (GP-1, GP-2, GP-1-SR, GP-1-RSR, GP-2-SR, GP-2-RSR)
<1ppm O2and <1ppm H2O purity level
  • O2capacity = 43 L per purifier column
  • H2O capacity = 1800 g per purifier column
Variable speed circulation blower: 120 cfm max flow rate blower
PLC control system
6" color touch screen
Automatic pressure control: (+/- 15 mbar)
Manual pressure control: Footswitch
Fully automatic regeneration sequence.
Purge valve:O2Level, Timer or manually controlled
Vacuum pump: 10 cfm (17 m3/h) rotary vane pump with oil mist eliminator & oil return kit
Integrated oxygen analyzer:
  • Range 0-1000 ppm
  • Zirconia sensor as standard or electrochemical sensor for
    solvent compatibility
Integrated moisture analyzer:Range 0-1000 ppm
Eco Mode Features
  • Vacuum pump timer: Shuts pump off for energy reduction
  • Automated Blower speed control: O2level adjusts blower speed
Approvals:

OPTIONS

  • 0-1000 ppm Zirconia Oxygen Analyzer
  • 0-1000 ppm Electrochemical Oxygen Analyzer
  • 0-25% Zirconia Oxygen Analyzer
  • 0-1000ppm Moisture Analyzer
  • 0-25% Helium in Argon Analyzer
  • Vacuum Pumps
  • 0-25% Helium in Nitrogen Analyzer
  • Solvent Sensor
  • Rectangular Freezer
  • Coldwell
  • Custom Coldwell
  • Numerous Antechamber Options
  • Thermoelectric Box Cooling System
  • Heat Exchanger
  • Dry Scroll Pump
  • Vacuum Ovens
  • Solvent Purification Systems
  • Microscope Systems
  • Custom Shelving
  • Electrical Feedthroughs
  • Fiberoptic Feedthroughs
  • RS-32/USB/ethernet Feedthroughs
  • Quartz Window for Solar Simulator Testing
  • Optical View Ports for Laser Spectroscopy
  • Vacuum/Gas Feedthroughs
  • Custom Feedthroughs
  • Door Interlocks
  • Automated Doors
  • Vacuum Cleaner
  • Polycarbonate Window
  • Evaporation System Integration
  • Quick Release Window System
  • Gloveport Covers
  • 250°C Hot Plates
  • Static Eliminator - Benchtop Style
  • Inkjet Printers
  • Probe Stations
  • UV Ozone Cleaners
  • Static Eliminator - Ceiling Mounted
  • Optical View Ports for Laser Spectroscopy
  • Binding Posts

SYSTEM APPLICATIONS

  • Additive (3D) Manufacturing
  • Aerospace
  • Automotive
  • Chemistry
  • Lamp Manufacturing
  • Lithium Ion Battery
  • Medical Device
  • Nuclear
  • OLED
  • Pharmaceutical
  • Semiconductor
  • Solar
  • Specialty Chemical
  • Thin Film
  • Many other applications
